Stairclimbers
Handtrucks
Manual Stacking Trucks

Our LiftKar PTR line is designed for the safe transportation of mobility-impaired individuals up and down straight staircases. With easy operation, 3 speeds, incline angle warnings, a long battery life of up to 1,000 steps per charging.

The LiftKar PT line is designed for use on straight and curved stairs, and more confined spaces. Offering simplicity and safety in various situations. With the LiftKar PT, you regain your mobility, whether at home or on the go.

LiftKar PTR
LiftKar PT
Find your local dealer!

ModulKar BASIC LINE

Shop
Contact
+43 7239 51010 100

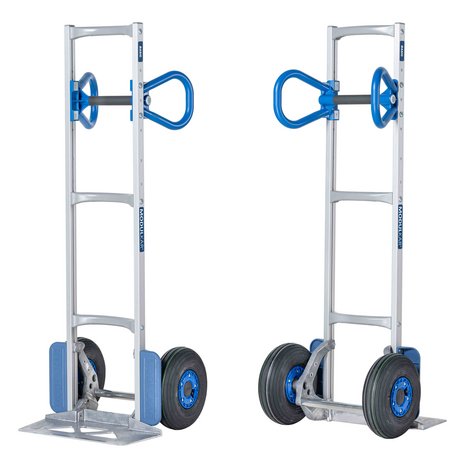

Models

BASIC

BASIC LINE

Cost-effective width comfortable loop grips

KgArt.Nr.€ *
300025 725333

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Discover the ModulKar BASIC by SANO: the handtruck redefining efficiency in load transport. With a 250 kg capacity and quick wheel change system, it adapts to your industry needs seamlessly, ensuring safe and timely deliveries.

article number: 025 725

standard equipment:
- height adjustable loop grips
- pneumatic tyres

key data:
- weight: 10 Kg
- dimensions: HxWxD 1310 mm x 490 mm x 470 mm

A wide range of accessories and options available

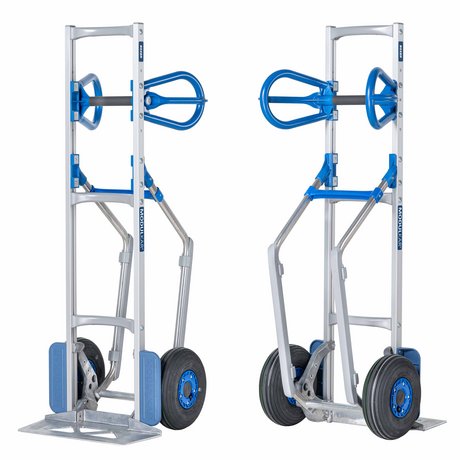

BOXER

BASIC LINE

Loop grips with knuckle protection
Long rugged Stair Gliders

KgArt.Nr.€ *
300025 720462

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

The professional: the handtruck redefining transport on long, flat surfaces. With its ability to effortlessly handle loads up to 300 kg, this handtruck excels in industries like beverages, postal services, furniture, and construction. Its ergonomic design not only exceeds quality expectations but also significantly reduces spinal strain.

Equipped with stair gliders, the ModulKar BOXER is the ideal partner for numerious industrial applications.

article number: 025 720

standard equipment:
- height adjustable loop grips with handguard
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 12 Kg
- dimensions: HxWxD 1310 mm x 510 mm x 565 mm

A wide range of accessories and options available

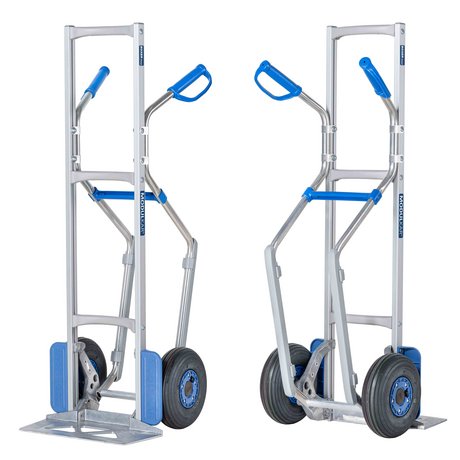

BOXER Pistol

BASIC LINE

Pistol grips with knuckle protection
Long rugged Stair Gliders

KgArt.Nr.€ *
300025 703440

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

The ModulKar BOXER Pistol is another versatile handtruck version revolutionizing transport on long, flat surfaces, with pistol grips. Tailored to effortlessly handle loads up to 300 kg, this model excels in industries like retail delivery, warehouse operations, event logistics, and heavy equipment handling.

Step into a new era of efficiency, spine-friendly transport with the ModulKar BOXER Pistol. Redefine how you handle heavy loads with superior quality and user-friendly design.

article number: 025 703

standard equipment:
- pistol grips with handguard
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
- weight: 11 Kg
- dimensions: HxWxD 1310 mm x 490 mm x 575 mm

A wide range of accessories and options available

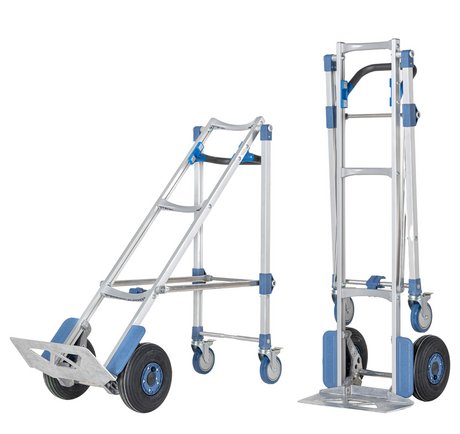

DOLLY KICK-OUT

BASIC LINE

For long goods e.g. Gas Bottles or Carpet Rolls

KgArt.Nr.€ *
300025 733633

* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

The perfect solution for effortless transport! Thanks to the innovative support wheel system, the ModulKar DOLLY KICK-OUT always remains stable and safe, even with heavy loads up to 300 kg. The hinged design enables easy handling and ensures that the DOLLY KICK-OUT balances itself automatically. This saves you energy, increases safety and optimises your transport processes. Ideal for use in warehouses, workshops or when moving house - this ModulKar is your reliable partner for any kind of transport task!

article number: 025 733

standard equipment:
- handle with soft tube
- foldable Dolly Kick-Out system
- pneumatic tires

key data:
- weight: 15.5 kg
- dimensions: HxWxD 1450 mm x 490 mm x 470 mm
  (H: 1170 x W: 490 x D: 1200 mm with the Dolly System opened out)

A wide range of accessories and options available



Description

ModulKar

Superior-quality modular handtruck for loads up to 300 kg

ModulKar is a handtruck built from high-strength stairclimber components. Basically the LiftKar SAL without a motor. Modular design means virtually all components can be changed. As a result the ModulKar can be optimised for a wide range of transport situations. The maximum load capacity is 300 kg.

The patented tube cross-section with double centre web means bolts can go right through. The groove on the inside provides extra strenght. The heavy-duty wheel mountings in combination with the connecting axle being just 8 cm above the ground makes it easy to tilt. Only one spanner is required because the same TORX bolts are used throughout.
A synthetic washer together with a cup spring prevent the toe plate from clattering. Wheel changes are easy with the bolted two-piece rim. Puncture-proof tyres can be fitted as an alternative. Wheel changes are Formula 1 style using just one bolt! The wheels are mounted on industrial-class ball bearings.



Downloads Product Resgitration
for loads up to 300 kg

extremely strong wheel bracket

patented tubular cross-section
Details
Advantages

8 unbeatable advantages
to convince you

  1. patented tubular cross-section, extremely strong
  2. easy wheel changing using just one bolt
  3. customizable for all transport situations
  4. extremely strong wheel brackets
  1. connecting axle with support struts for rigidity
  2. innovative ratle free foldable toe plate mounting
  3. two-piece wheel – mounted on ball bearings
  4. new ergonomic design
Applications

The ModulKar handtruck
in daily situations

Extras & Accessories

Additional options matching your needs

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 2,70 m / 25 mm

Optionally available

Fixation belt 2,70 m / 25 mm
Art. no. 930 007

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 3,5 m / 50 mm

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Keg hook

Optionally available

Art. no. 930 108

i

Crate - box hook

Optionally available

Art. no. 930 171

i

Twin bottle holder

Optionally available

Art. no. 930 107

i

Table platform

Optionally available

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Bag incl. holder

Optionally available

for belt, charger, and much more

Art. no. 935 140

i

Advertising panel

Optionally available

for your company logo

Art. no. 936 067

i

Main wheel grey assembled

Optionally available

non-marking, per pair

Art. no. 930 109

i

Puncture-proof tyres assembled

Optionally available

grey, per pair

Art. no. 930 119

i

Wheel base extension

Optionally available

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wings for white goods - ModulKar

Optionally available

Short
length: 334 mm  /  13.1", per pair for ModulKar
Art. no. 930 126

Long
length: 860 mm  /  33" , per pair for ModulKar
Art. no. 930 131

i

Ratched belt with roll-up mechanism - complete

Optionally available

for LiftKar SAL
Art. no. 930 193

i

Toe plate DS-NG

Optionally available

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate G

Optionally available

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate GS

Optionally available

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS-NG

Optionally available

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate LH

Optionally available

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate S

Optionally available

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate V

Optionally available

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate WL

Optionally available

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate XWL

Optionally available

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074
