SAL PbS FOLD

Frame-height: 1.560 mm / Folded: 1.000 mm
with wider upper handle

Kg	Art.Nr.	€ *
110	031 708	2.770,00
140	031 707	2.890,00
170	031 723	3.010,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Ideal for transporting white goods up and down stairs.

Whether compact floor grinders, oxygen cylinders or dishwashers - with the LiftKar SAL PbS FOLD model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position and without straining your back.

The LiftKar SAL PbS FOLD is ideal for transporting white goods up and down stairs. The patented folding mechanism allows the handlebar to be optimally adjusted to the load. Despite its low weight of 19 kg, the LiftKar SAL PbS FOLD can also handle heavy loads.

The LiftKar SAL PbS FOLD is available in three weight classes: 110 kg, 140 kg and 170 kg.

LiftKar SAL FOLD by SANO-Stairclimbers

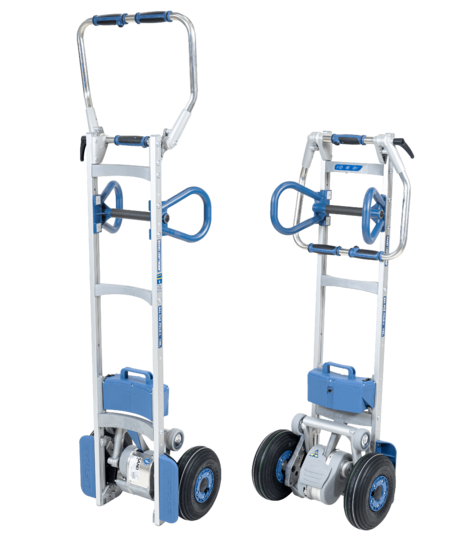

SAL PbS FOLD-L

Loop grip

Frame-height: 1.750 mm / Folded: 1.360 mm
2nd Push button for ascending at the middle bar

Kg	Art.Nr.	€ *
110	031 717	2.820,00
140	031 716	2.940,00
170	031 724	3.060,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Transport tall loads and keep them perfectly balanced.

Whether its fridges, tall oxygen cylinders or bulky stacks of armchairs - with the LiftKar SAL PbS FOLD-L model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position and without straining your back.

The LiftKar SAL PbS FOLD-L is ideally suited to transporting somewhat heavier loads in a perfectly balanced manner. Despite its low weight of 20 kg, the LiftKar SAL PbS FOLD-L can also handle heavy loads. Three handle variants available (loop, round or pistol grip).

The LiftKar SAL PbS FOLD-L is available in three weight classes: 110 kg, 140 kg and 170 kg.

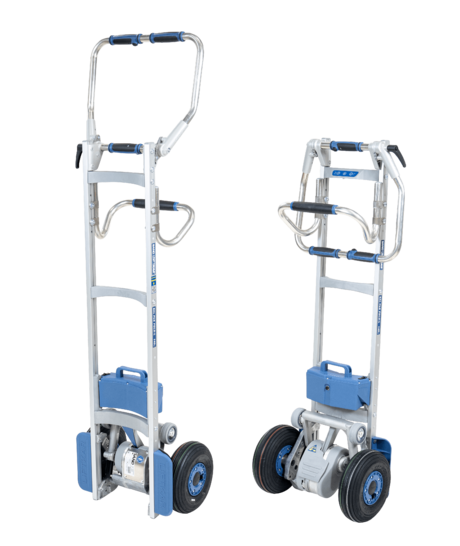

SAL PbS FOLD-L

Round grip

Frame-height: 1.750 mm / Folded: 1.360 mm
2nd Push button for ascending at the middle bar

Kg	Art.Nr.	€ *
110	031 736	2.820,00
140	031 737	2.940,00
170	031 738	3.060,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Transport tall loads and keep them perfectly balanced.

Whether its fridges, tall oxygen cylinders or bulky stacks of armchairs - with the LiftKar SAL PbS FOLD-L model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position and without straining your back.

The LiftKar SAL PbS FOLD-L is ideally suited to transporting somewhat heavier loads in a perfectly balanced manner. Despite its low weight of 20 kg, the LiftKar SAL PbS FOLD-L can also handle heavy loads. Three handle variants available (loop, round or pistol grip).

The LiftKar SAL PbS FOLD-L is available in three weight classes: 110 kg, 140 kg and 170 kg.

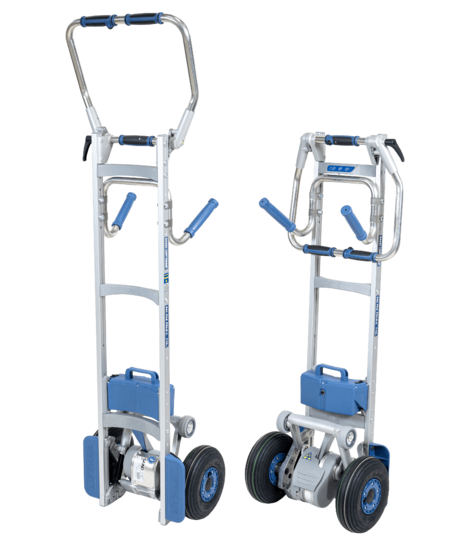

SAL PbS FOLD-L

Pistol grip

Frame-height: 1.750 mm / Folded: 1.360 mm
2nd Push button for ascending at the middle bar

Kg	Art.Nr.	€ *
110	031 739	2.820,00
140	031 740	2.940,00
170	031 741	3.060,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Transport tall loads and keep them perfectly balanced.

Whether its fridges, tall oxygen cylinders or bulky stacks of armchairs - with the LiftKar SAL PbS FOLD-L model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position and without straining your back.

The LiftKar SAL PbS FOLD-L is ideally suited to transporting somewhat heavier loads in a perfectly balanced manner. Despite its low weight of 20 kg, the LiftKar SAL PbS FOLD-L can also handle heavy loads. Three handle variants available (loop, round or pistol grip).

The LiftKar SAL PbS FOLD-L is available in three weight classes: 110 kg, 140 kg and 170 kg.

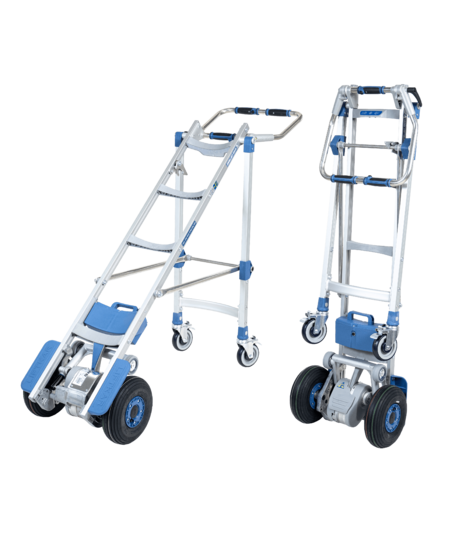

SAL PbS

Dolly Kick-Out

Frame-height: 1.920 mm / Folded: 1.540 mm
2nd Push button for ascending at the middle bar

With Dolly Kick-Out System

Kg	Art.Nr.	€ *
110	031 733	3.120,00
140	031 734	3.240,00
170	031 735	3.360,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Transport heavy loads with ease – even over longer distances.

Whether cabinets, rolls of linoleum or other bulky loads – the LiftKar SAL PbS Dolly Kick-Out is designed for transporting heavy loads safely and with minimal effort. The integrated Dolly Kick-Out system provides additional support when moving heavy loads over longer distances, helping to keep the load perfectly balanced and reducing the amount of weight that needs to be held by the operator.

The LiftKar SAL PbS Dolly Kick-Out combines reliable stair-climbing technology with ergonomic load support. The robust design and stable handling make it ideal for professional use when heavy or bulky loads need to be transported not only up and down stairs, but also over longer distances on level surfaces.

The LiftKar SAL PbS Dolly Kick-Out is available in three weight classes: 110 kg, 140 kg and 170 kg.

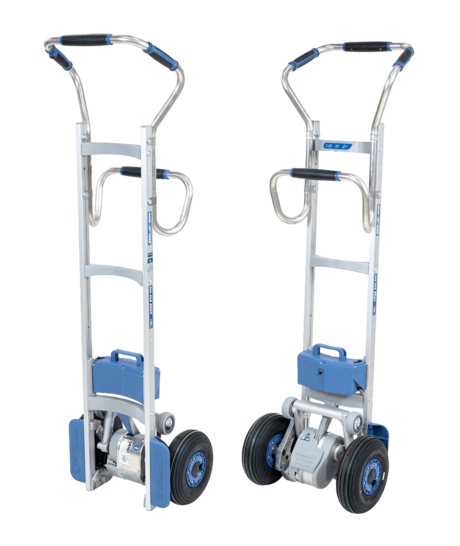

SAL PbS ERGO

Round grip

Frame-height: 1.600 mm

Kg	Art.Nr.	€ *
110	031 705	2.640,00
140	031 704	2.760,00
110	031 722	2.880,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

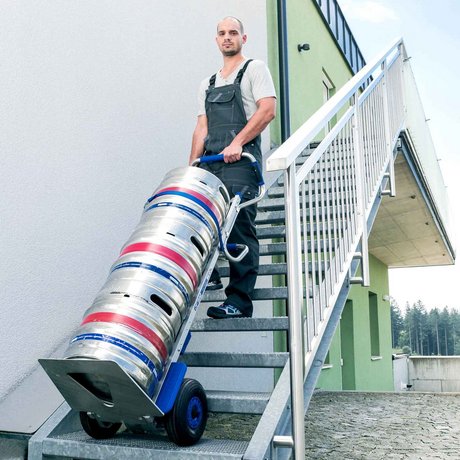

Upright posture and maximum control. Ideal for beer kegs, stacks of tyres, etc.

Thanks to the exceptionally ergonomic handle, the LiftKar SAL PbS ERGO model allows you to maintain an upright posture on the stairs and keep maximum control over the goods being transported. Ideal for beer kegs, stacks of tyres, etc.

The whole LiftKar SAL PbS ERGO range is characterised by its low weight of 19 kg. As a result you can handle transport jobs even easier and faster. The LiftKar SAL PbS ERGO even assists you with a smoother ride outside, especially on bumpy construction sites. Different tyres can be fitted to match the unit to its operating conditions. Two handle variants available (round or pistol grip).

The LiftKar SAL PbS ERGO is available in three weight classes: 110 kg, 140 kg and 170 kg.

Liftkar SAL ERGO by SANO-Stairclimbers on Sketchfab

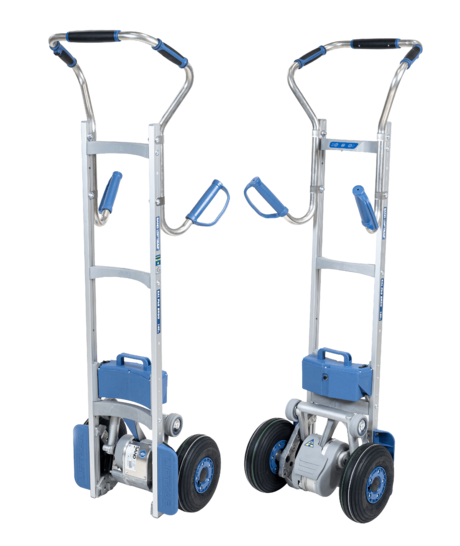

SAL PbS ERGO

Pistol grip

Frame-height: 1.600 mm

Kg	Art.Nr.	€ *
110	031 720	2.650,00
140	031 719	2.770,00
170	031 725	2.900,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Upright posture and maximum control. Ideal for beer kegs, stacks of tyres, etc.

Thanks to the exceptionally ergonomic handle, the LiftKar SAL PbS ERGO model allows you to maintain an upright posture on the stairs and keep maximum control over the goods being transported. Ideal for beer kegs, stacks of tyres, etc.

The whole LiftKar SAL PbS ERGO range is characterised by its low weight of 19 kg. As a result you can handle transport jobs even easier and faster. The LiftKar SAL PbS ERGO even assists you with a smoother ride outside, especially on bumpy construction sites. Different tyres can be fitted to match the unit to its operating conditions. Two handle variants available (round or pistol grip).

The LiftKar SAL PbS ERGO is available in three weight classes: 110 kg, 140 kg and 170 kg.

Liftkar SAL ERGO by SANO-Stairclimbers on Sketchfab

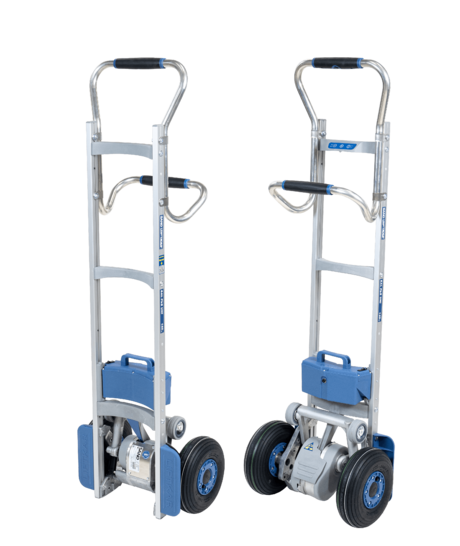

SAL PbS UNI

Round grip

Frame-height: 1.530 mm

Kg	Art.Nr.	€ *
110	031 702	2.620,00
140	031 701	2.740,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Water bottles, crates of drinks or copy paper - the lightweight all-rounder with speed.

The LiftKar SAL PbS UNI model corresponds to the classic handtruck and is particularly suitable for transporting water bottles, drinks crates, copy paper or folders.

The entire LiftKar SAL PbS UNI range is characterised by its low weight of 19.5 kg. This makes transport even easier and quicker. The LiftKar SAL UNI is also easy to manoeuvre outdoors, especially on bumpy building site surfaces. Different tyres adapt the device to the operating conditions. Two handle variants available (loop or pistol grip).

The LiftKar SAL PbS UNI is available in three weight classes: 110 kg und 140 kg.

LiftKar SAL UNI by SANO-Stairclimbers on Sketchfab

SAL PbS UNI

Pistol grip

Frame-height: 1.530 mm

Kg	Art.Nr.	€ *
110	031 728	2.630,00
140	031 727	2.750,00

Prices do not include toe plate and toe plate block.
* Prices: ex works, exkl. VAT, unpacked.

Market-specific pricing – please contact your local dealer.

Water bottles, crates of drinks or copy paper - the lightweight all-rounder with speed.

The LiftKar SAL PbS UNI model corresponds to the classic handtruck and is particularly suitable for transporting water bottles, drinks crates, copy paper or folders.

The entire LiftKar SAL PbS UNI range is characterised by its low weight of 19.5 kg. This makes transport even easier and quicker. The LiftKar SAL UNI is also easy to manoeuvre outdoors, especially on bumpy building site surfaces. Different tyres adapt the device to the operating conditions. Two handle variants available (loop or pistol grip).

The LiftKar SAL PbS UNI is available in three weight classes: 110 kg und 140 kg.

LiftKar SAL UNI by SANO-Stairclimbers on Sketchfab

Description

LiftKar SAL PbS
The extremely fast and light powered
stairclimbers for loads up to 170 kg.

Sounds familiar? Just carry the packs of tiles or crates of drinks one at a time up the stairs quickly, instead of doing a professional job from the beginning: with the LiftKar SAL PbS . With the powered stairclimber from SANO the job is finished sooner and easier, and takes the strain off your back. The LiftKar SAL PbS is as easy to use as a handtruck. Going up, the LiftKar SAL PbS climbs onto the next step efficiently and precisely, all by itself. Going down, the motor acts like an eddy current brake. The load glides down smoothly, softly and safely - no need to press any buttons. Your back is protected and the risk of accidents is minimised.

The LiftKar SAL PbS is available in four versions. This choice of models makes it ideal for applications in industry, retail and business as well as in schools, hospitals, commercial kitchens, office blocks and many more. Whatever your transport needs, the LiftKar SAL PbS is available with the right equipment options.

3 different motor sizes are available that guarantee an optimum climbing performance of up to 48 steps per minute depending on the weight to be transported (up to 170 kg).

Service User manuals

extremely lightweight and fast

very wide range of applications

extended battery life

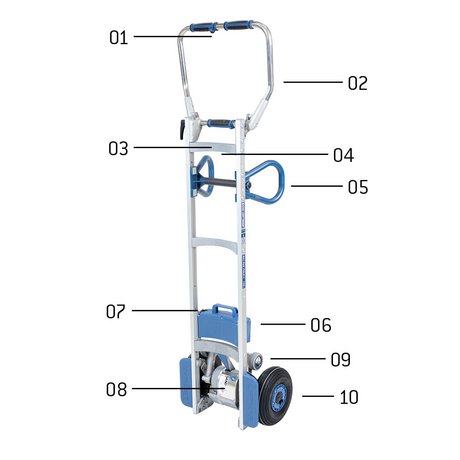

Features

01up button

LiftKar SAL PbS

up button

The LiftKar SAL PbS stairclimber up button

02upper handle

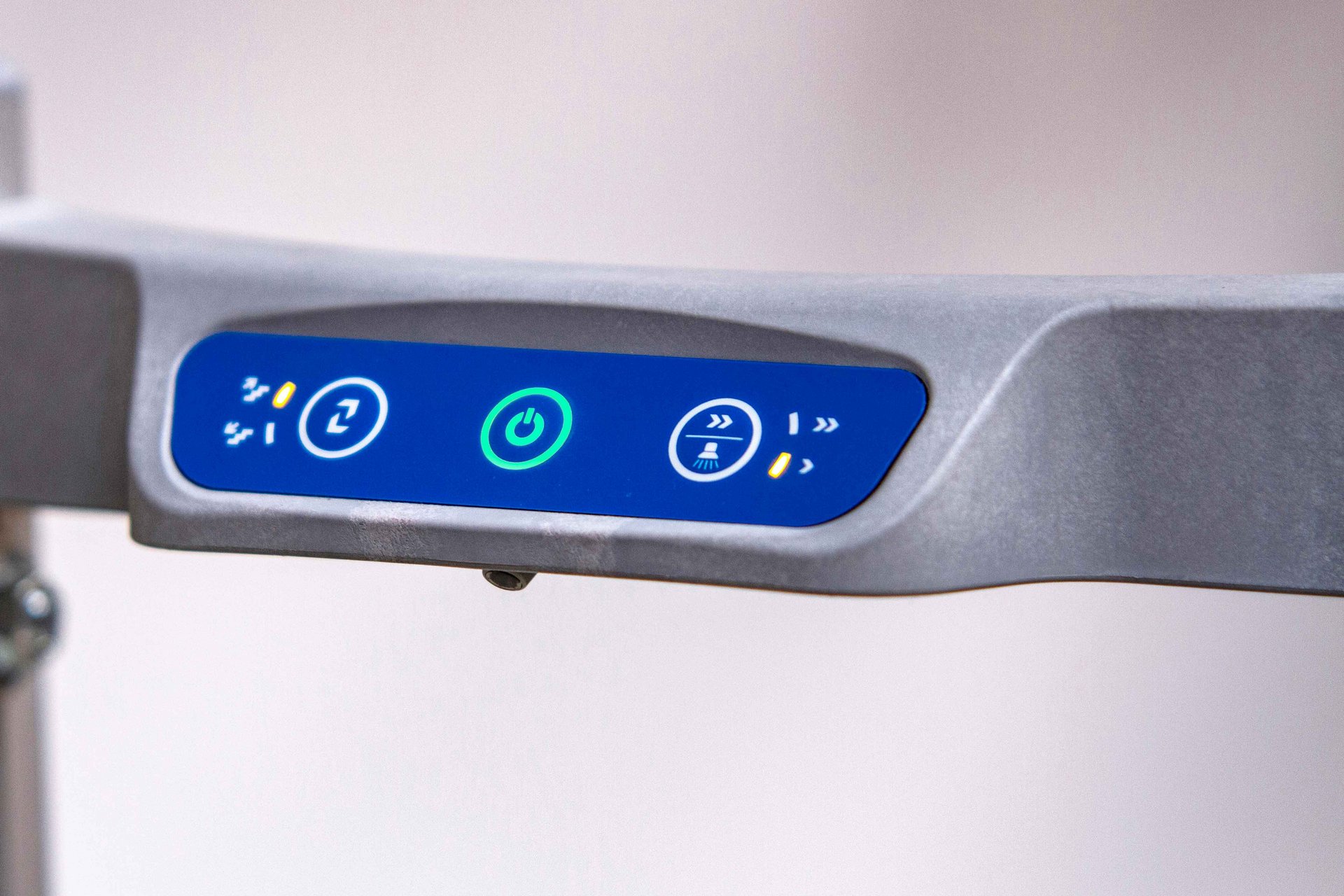

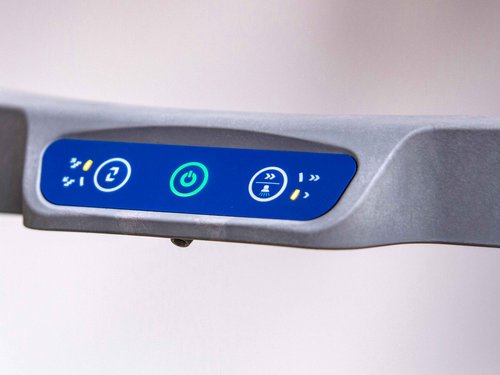

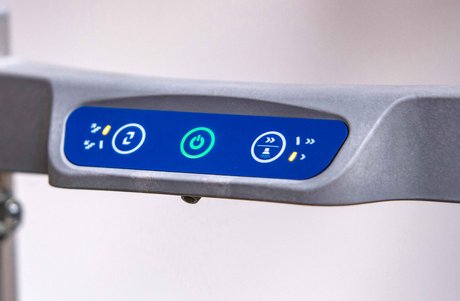

03control unit

LiftKar SAL PbS

LiftKar SAL PbS stairclimber pivot arm with forward-braked support wheels.

10main wheels

Details

Advantages

12 unbeatable advantages
to convince you

extremely lightweight - 19 kg incl. quick exchange battery (depending on the model)
extremely fast - up to 48 steps/minute (depending on model)
Two climbing speeds
intelligent lifting unit starts automatically when going down stairs
hinged toe plate mounting - fixed version also available
friction clutch and electronic overload protection

manoeuvrable like a handtruck
confident on all stairs, even spiral staircases and landings where space is restricted
large pneumatic tyres, puncture-proof available as an alternative
second battery pack and in-transit charger for constant 24-hour use
high-strength aluminium toe plate
Foldable - fits in any car boot (depending on model)

Applications

The LiftKar SAL PbS stairclimbers
in daily situations

Note: SANO products are distributed exclusively through authorized dealers. Direct sales to end customers are not provided through this platform.

These prices serve solely as a calculation basis for professional distributors and do not include additional services, such as training, technical consulting, transport, packaging, or country-specific duties and taxes.

Final conditions may vary depending on country requirements, service, and local distribution structure.

→ LiftKar Distributor Program

To top

Optionally available

Art. no. 936 001

i

Bag incl. holder

Optionally available

for belt, charger, and much more

Art. no. 935 140

i

Fixation belt 1,40 m / 25 mm

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 2,70 m / 25 mm

Optionally available

Fixation belt 2,70 m / 25 mm
Art. no. 930 007

(does not fit on ModulKar 2 in 1 HD model)

i

Fixation belt 3,5 m / 50 mm

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.

Art. no. 930 123

i

Optionally available

Art. no. 930 108

i

Twin bottle holder

Optionally available

Art. no. 930 107

i

Optionally available

with Air-Tyre grey, blue rim with ball bearings

Art. no. 930 110

i

Puncture proof wheel

Optionally available

Optionally available

Optionally available

Width x Depth: 330 x 450 mm - 13 x 17.7 in

Art. no. 930 191

i

Technical data

The LiftKar SAL PbS stairclimbers
in figures and facts

Article Number

Description

Load capacity

Load capacity | Pounds

Weight base unit without battery

Weight base unit without battery | Pounds

Battery weight

Battery weight | Pounds

Autonomy (max.)

Climbing speed (steps / min.)

For use on steep and narrow spiral staircases

Foldable

Transportation over stairs

Transportation on flat surfaces

Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar SAL PbS UNI

031 702 / 031 701

The professional for tall loads

110 kg / 140 kg

242.5 lb / 308.6 lb

15,9 kg

35.1 lbs

4,0 kg

8.8 lbs

300 steps (up and down)

48 / 35 / 29 (steps/min.)

✔

-

✔

210 mm

1510 / 490 / 280 mm

59.5" / 19.3" / 11"

LiftKar SAL PbS ERGO

031 705 / 031 704 / 031 722

The specialist for stacked goods

110 kg / 140 kg / 170 kg

242.5 lbs / 308.6 lbs / 374.8 lbs

16,0 kg

35.2 lbs

4,0 kg

8.8 lbs

approx. 300 steps (up and down)

48 / 35 / 29 (steps/min.)

✔

-

✔

210 mm

1600 / 490 / 395 mm

63" / 19.3" / 15.6"

LiftKar SAL PbS FOLD-L

031 717 / 031 716 / 031 724

The all-rounder, compact & stable

110 kg / 140 kg / 170 kg

242.5 lbs / 308.6 lbs / 374.8 lbs

17,7 kg

39.0 lbs

4,0 kg

8.8 lbs

approx. 300 steps (up and down)

48 / 35 / 29 (steps/min.)

✔

210 mm

1750 (folded 1360) / 490 / 280 mm

68.9" (53.5" folded) / 19.3" / 11"

LiftKar SAL PbS FOLD

031 708 / 031 707 / 031 723

The compact one, easy to transport

110 kg / 140 kg / 170 kg

242.5 lbs / 308.6 lbs / 374.8 lbs

16,2 kg

35.7 lbs

4,0 kg

8.8 lbs

approx. 300 steps (up and down)

48 / 35 / 29 (steps/min.)

✔

210 mm

1560 (folded 1000) / 490 / 280 mm

61.4" (39.3" folded) / 19.3" / 11"

SAL PbS DOLLY KICK-OUT

031 733 / 031 734 / 031 735

The larger chooice for longer distances

110 / 140 / 170 kg

242.5 / 308.6 / 374.8 lbs

22,8 kg

50.3 lbs

4,0 kg

8.8 lbs

approx. 300 steps (up and down)

48 / 35 / 29 (steps/min.)

✔

210 mm

1920 (1540 folded) / 490 / 280 (1200 Dolly-Kick-Out extended) mm

75.6" (60.6" folded) / 19.3" / 11" (47.2" Dolly-Kick-Out extended)
